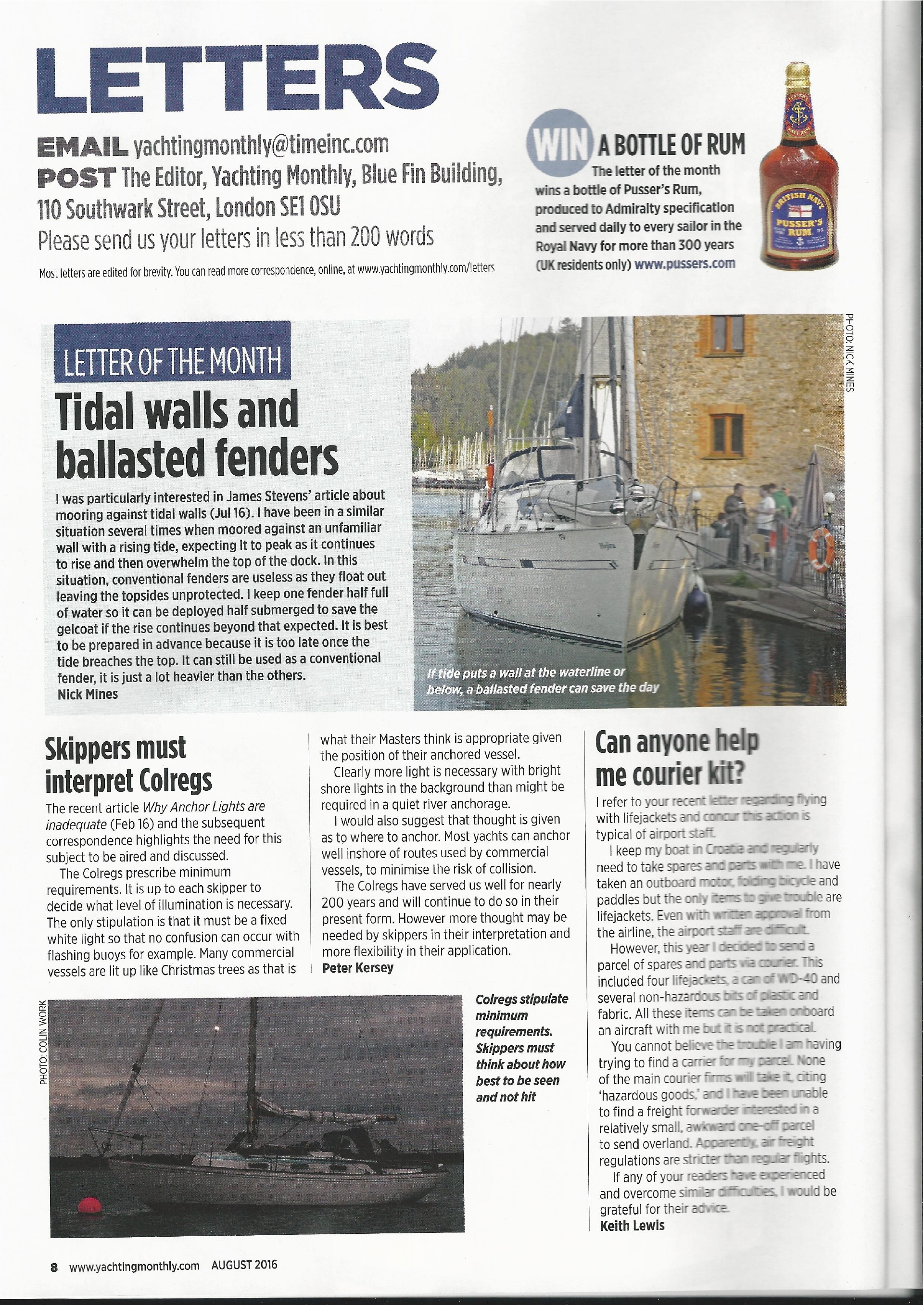

This letter appeared in the August 2016 Yachting Monthly:-
Atlantic Return

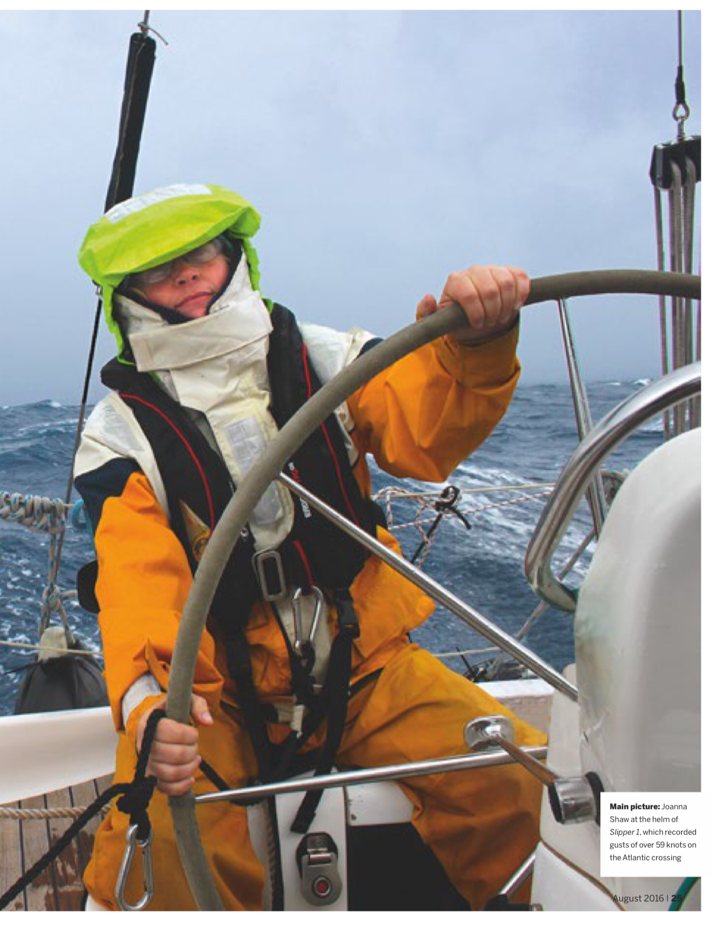

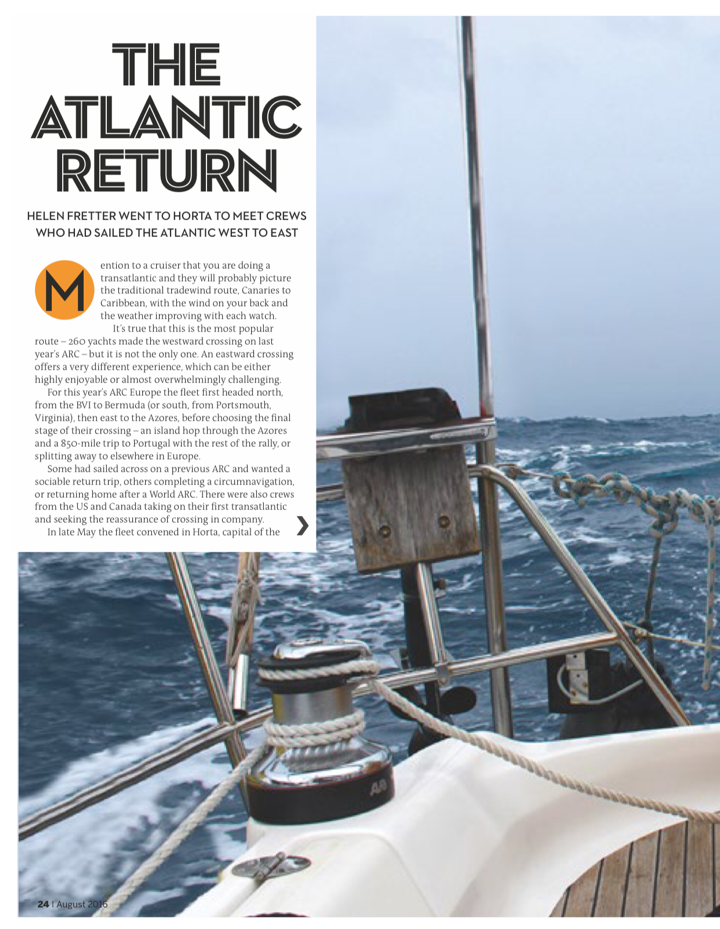

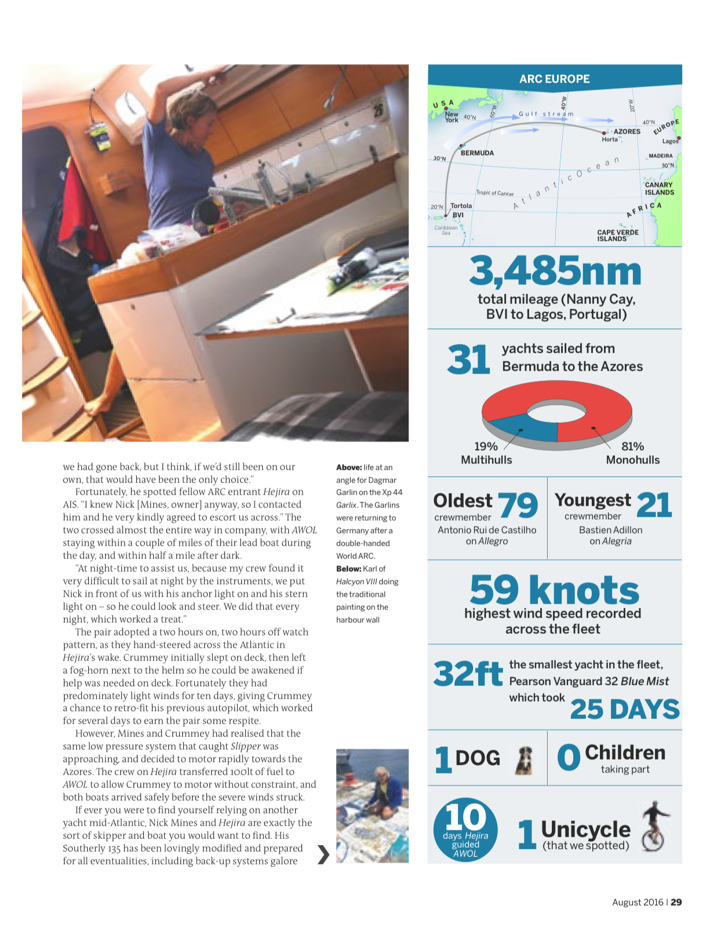

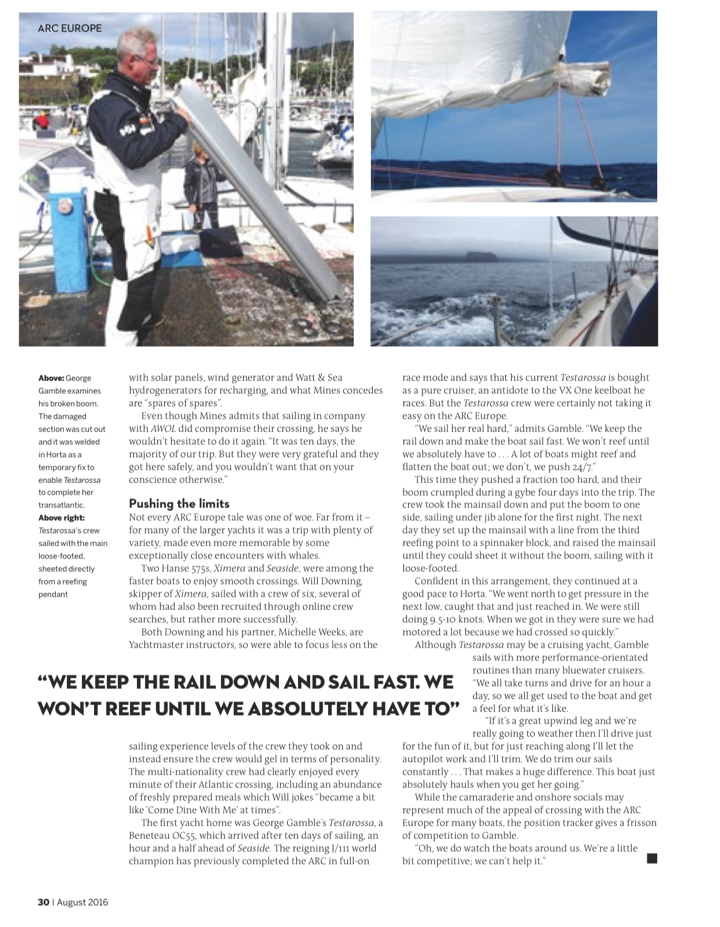

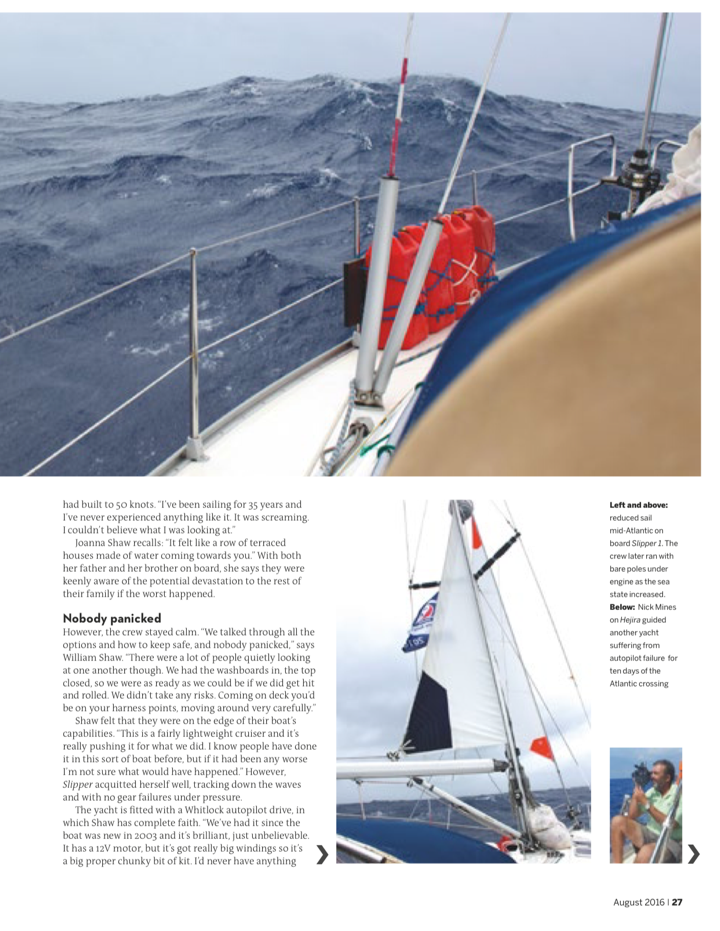

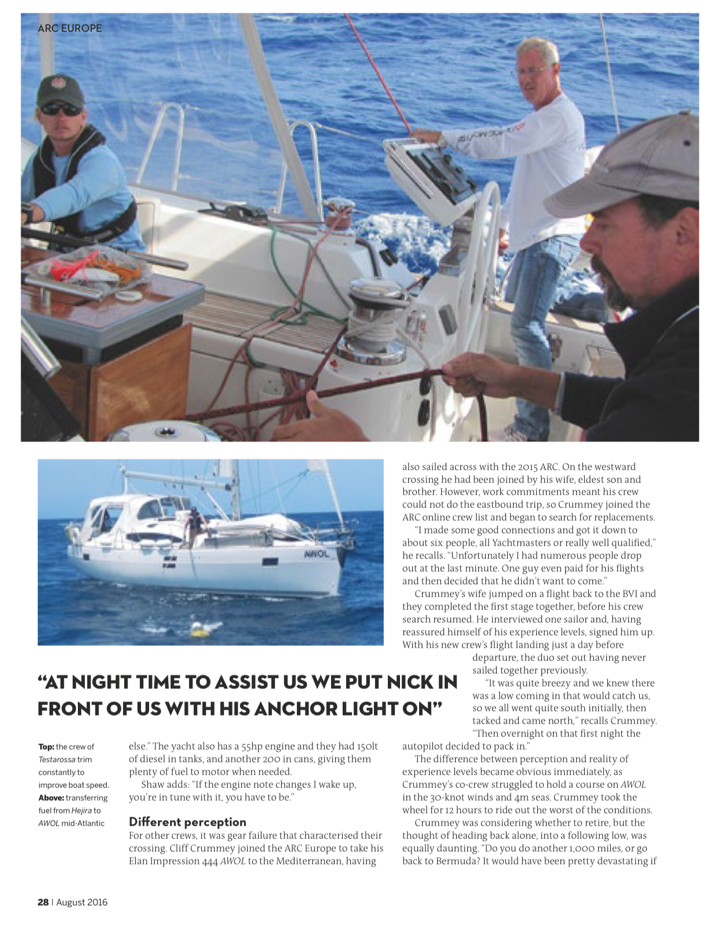

This article appeared in the August 2016 issue of Yachting World. Helen Fretter, the Deputy Editor interviewed crews in Horta for a feature on the ARC Europe rally which had not been featured before. The account of Hejira’s ‘chaperoning’ of AWOL, another rally participant features.
Sea water pump failure
This ātale of woeā has nothing to do with the Southerly but has several lessons which can be drawn from the salutary experience and I hope that by recounting the story, others will be better able to deal with any similar problems should they arise.
In the late 1990ās, I decided that it was time to sell my Parker 31 and move up in size and move to the sun. I focussed on the Jeanneau 44 āSun Magicā as it āticked the boxesā for my next phase of sailing. Having viewed several examples of this model, I was rather taken with an ex-charter yacht in Majorca which had been substantially re-fitted by a marina yard and was quite tidy with new sails among other things. They had (apparently) rebuilt the 50hp Perkins engine and I found this reassuring.
On my first extended cruise I was heading back from Sardinia in Novemberā¦!.. Having been stuck there waiting for a break in the relentless gales, we had just left Menorca when the engine note changed and it was clear that the sea water cooling supply to the engine had failed. Ruling out the impeller, it became evident that the water pump shaft, which was driven direct from the engine cam shaft via a slotted keyway, was not turning. With nearly 100 miles to go to our marina berth in Mallorca and with crew booked on flights back to the UK the following day, there was some pressure. The wind had completely failed and some of the crew were struggling to cope as we wallowed in the uncomfortable swell left over from the storms. We were going nowhere and it was imperative that we found some way to get the engine āup and runningā. A bit of lateral thinking and improvisation got us underway as we utilised the electric bilge pump, diverted using various connections, gaffer tape and jubilee clips to take a sea water supply from the engine sea cock direct into the heat exchanger. Switching the bilge pump on, the Heath Robinson ālash upā held together all the way back to the marina and only fell apart as we went astern into our berth.
The yard (that had rebuilt the engine) replaced the pump and it was put down (wrongly as it transpired) to āone of those thingsā.
The next time the pump failed, we were just off the entrance to Barcelona Harbour with fortunately a downwind run to the end of our dock. We ghosted down under poles as I worked out how best to achieve a satisfactory berthing under engine. Having full fresh water tanks, I instructed my young son to turn on all the hot water taps down below and I started the engine at the end of the dock. The fresh cold water running through the calorifier cooled the loop through the engine allowing us sufficient time to berth.
The first lesson here is that one should always look behind any failure to establish a cause. In this case, the engine rebuild exercise had not used the recommended alignment tool to ensure that the rotation of the cam shaft was concentric with the water pump and they were not. Every turn moved the tongue and slot backwards and forwards against one another and the result, after a time, was that the tongue was worn into a pin which no longer rotated with the groove.
Purchasing an alignment tool from Perkins, we aligned the pump and cam shaft and kept the reconditioned old pump as a spare that was never subsequently needed in the 13 years that I kept the yacht.
The other lesson which is easily acknowledged but far more difficult to implement is not to make tight travel deadlines. I know that we have all heard this before but far better to have a leisurely day or two in hand than force a passage through inclement weather and unforeseen failures. I feel for charterers who have deadlines to keep!
Water Maker Intake
When I bought my āusedā 135, I commissioned Northshore to carry out some work which I felt would benefit from the epithet āInstalled by the original buildersā should I come to sell the vessel in the future.
Other elements of the Northshore work certainly warrant dedicated articles but my recent Atlantic circuit has prompted this entry regarding the watermaker installation.
With extended cruising aspirations, a watermaker seemed an essential part of the picture and the low output Katadyn 40E was recommended. This made sense as with the planned electrical generation regime, the watermaker could be left running in the background for long periods without taxing the batteries. On the face of it, the installation looked neat and professional.

Because once commissioned, regular āpicklingā would be necessary; the water maker was not tested until heading south for the Canaries. The unit worked perfectly in the marina but failed to produce any desalinated water once underway. This conundrum was the subject of Email exchanges with Jim at Mactra, the agents for Katadyn who was very helpful and supportive, particularly as they had not supplied Northshore as they had bought a āgrey importā. Changing the pipework, repositioning the filter in a lower location, repeated bleeding and flushing failed to rectify the problem. It was only a series of progressive elimination tests, culminating in supplying sea water direct from a bucket in the cockpit, that drinking water was eventually produced. The problem was clearly the water maker sea-cock somehow admitting air so that the pressure on the membrane was compromised (pneumatic instead of hydraulic) but the prospect of filling buckets and holding them in the cockpit for the small quantities of fresh water produced was not practical so we had to think of a better way. Inspiration dawned while on a āstop overā in Mindelo in the Cape Verde Islands. We extended the intake pipework and fed it down the keel box slot beyond the hull with a fishing weight attached to the end. This Heath Robinson ālash upā worked perfectly on the 2000 mile passage to the Caribbean and allowed liberal showering which was welcomed by all.
Our analysis suggested that the tiny bubbles that always run along the hull on passage were the root of the problem. In the small quantities normally experienced, the watermaker can deal with their very minor influence as the pressure is overwhelmingly hydraulic. The sea cock that had been installed however, although of good quality bronze with a strainer, was totally inappropriate.

When underway, the tiny bubbles collected in the top of the strainer and progressively compounded into a large bubble which was trapped until the yacht heeled when it was released into the supply pipework. This then collected against the water maker membrane preventing the seawater from reaching sufficient pressure to pass through.
Jim at Mactra recommended that the water maker intake should be spaced away from the hull and forward facing but could not recommend any proprietary fitting. Additionally, because of the unique drying out abilities of the Southerly, any protrusion on the underside of the hull would be vulnerable to damage .

The solution turned out to be the modification of a log impeller through hull fitting so that it could be withdrawn when the water maker was not in use (the water maker is only used on long Ocean passages) and replaced with the flush blanking āplugā.


The strainer sea cock was re-utilised for a new sea water pump inlet under the galley sink which, in the event, all but rendered the water maker unnecessary!
Fans
The addition of 12V sockets in strategic locations to power electric fans has proved to be a real winner. When anchored in the tropics or when the only shore power is American 60Hz precluding the use of one of the AC units, the cooling provided by the fans is a real boon.
We have found that the traditional axial fan has its place but that they tend to be noisy and fragile.
The centrifugal fans however are sturdy, two speed, more compact and will sit on a shelf, out of the way ready to be switched on whenever the need arises. You will find them very cheap on Amazon.
